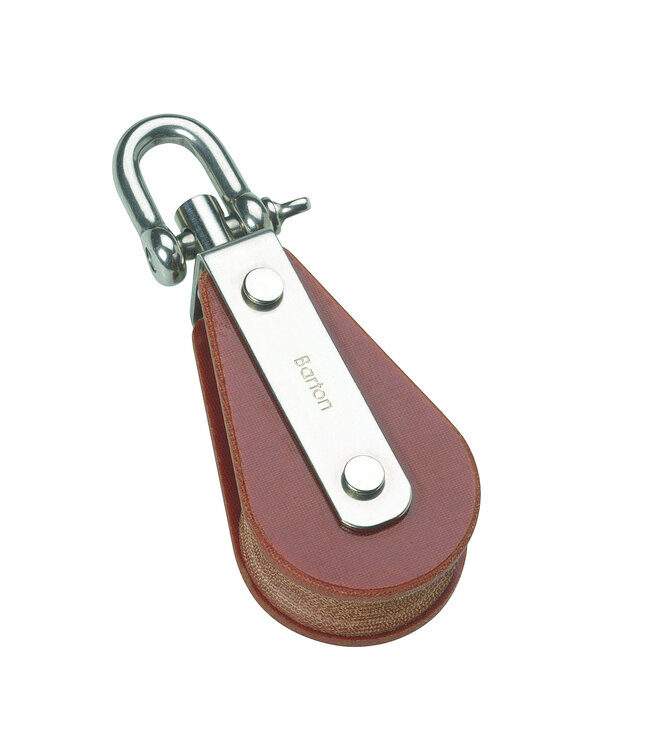

The Barton TUPHblox T01130 is a single block with swivel and a 30 mm sheave. It is suitable for rope with a maximum diameter of 10 mm. The swivel allows the block to align with the direction of the rope.
The body is made from Tufnol, a cotton-reinforced phenolic resin laminate that is strong, durable and lightweight. The block features 316 stainless-steel bindings, while the sheave runs on a brass bearing. The elongated opening at the top accepts either the pin or bow of a shackle.
Specifications:
• Brand: Barton
• Range: TUPHblox
• Part number: T01130
• Type: single block with swivel
• Body material: Tufnol
• Binding material: 316 stainless steel
• Bearing: brass
• Sheave diameter: 30 mm
• Maximum rope diameter: 10 mm
• Version: without becket
