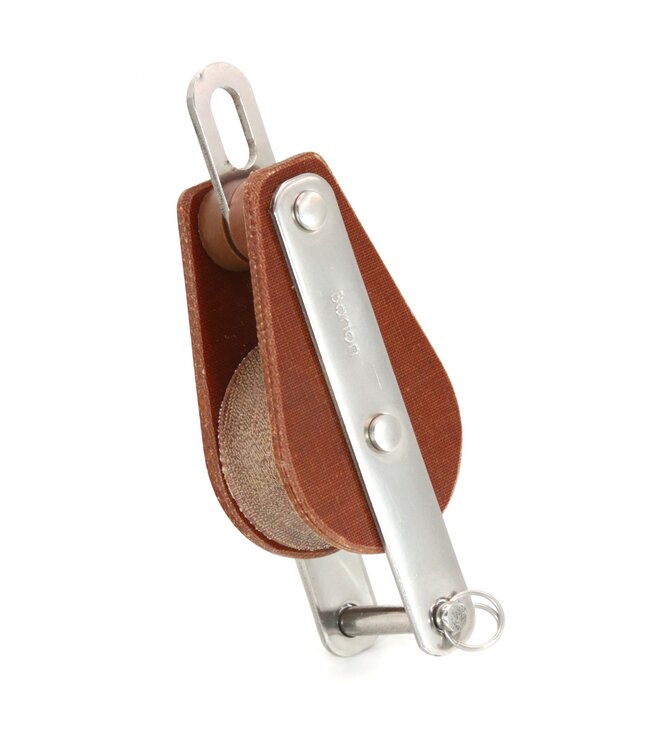

This Barton single Tufnol block features a fixed eye, becket and 30 mm sheave. It is suitable for rope with a maximum diameter of 10 mm. The becket provides a fixed attachment point for the end of the rope when creating a purchase or tackle system.
The body is manufactured from Tufnol, a strong, durable and lightweight cotton-reinforced phenolic laminate. The block features 316 stainless-steel fittings and runs on a brass bearing. A suitable shackle can be attached through the elongated fixed eye using either its pin or bow.
Specifications:
• Brand: Barton Marine
• Range: TUPHblox
• Part number: T01181
• Type: single block with fixed eye and becket
• Number of sheaves: 1
• Sheave diameter: 30 mm
• Maximum rope diameter: 10 mm
• Safe working load: 350 kg
• Breaking load: 700 kg
• Weight: 58 g
• Overall length including becket: 88 mm
• Body material: Tufnol
• Fittings: 316 stainless steel
• Bearing: brass
