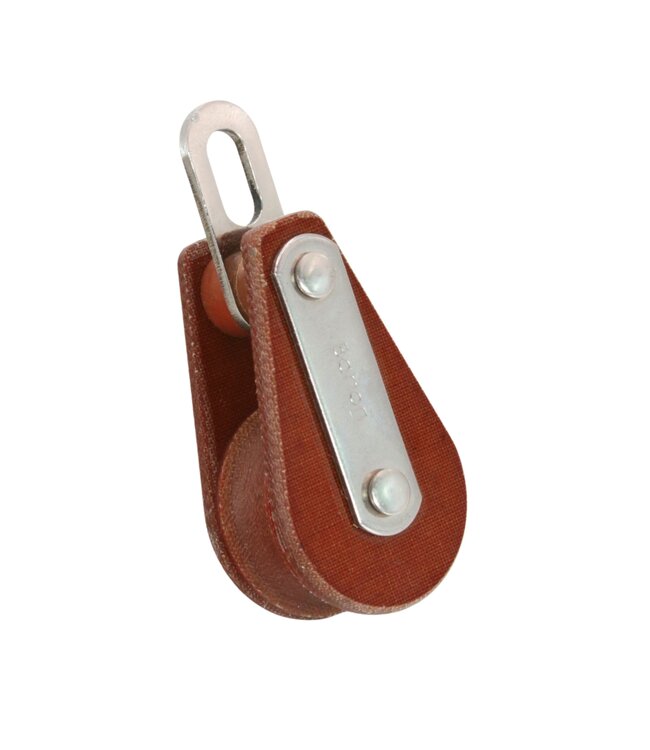

The Barton TUPHblox T01180 is a single block featuring an elongated fixed eye and a 30 mm sheave. It is suitable for rope with a maximum diameter of 10 mm. The fixed eye can be attached using a shackle or rope.
The body is manufactured from Tufnol, a cotton-reinforced phenolic resin laminate that is strong, durable and lightweight. The block features 316 stainless-steel fittings, while the sheave runs on a brass bearing.
Specifications:
• Brand: Barton
• Range: TUPHblox
• Part number: T01180
• Type: single block with fixed eye
• Body material: Tufnol
• Fitting material: 316 stainless steel
• Bearing: brass
• Sheave diameter: 30 mm
• Maximum rope diameter: 10 mm
• Safe working load (SWL): 350 kg
• Break load: 700 kg
• Weight: 48 g
