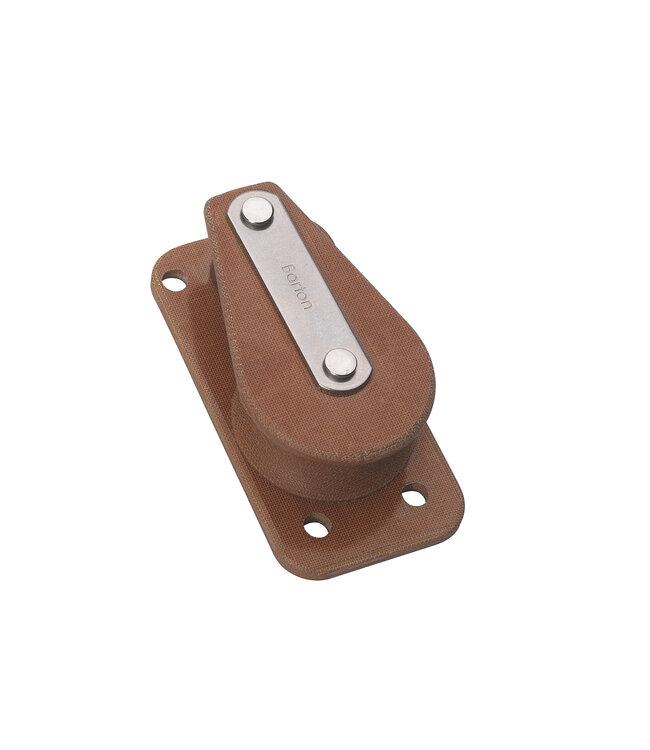

This Barton TUPHblox cheek block is designed for fixed installation on a flat surface. It features a single 30 mm sheave and is suitable for rope with a maximum diameter of 10 mm. Its fixed mounting makes it suitable for guiding and redirecting lines on board.
The body is manufactured from Tufnol, a cotton-reinforced phenolic resin laminate that is strong, durable and lightweight. The block features 316 stainless-steel bindings, while the sheave runs on a brass bearing.
Specifications:
• Brand: Barton
• Range: TUPHblox
• Type: single cheek block
• Body material: Tufnol
• Binding material: 316 stainless steel
• Bearing: brass
• Sheave diameter: 30 mm
• Maximum rope diameter: 10 mm
• Mounting: fixed installation on a flat surface
