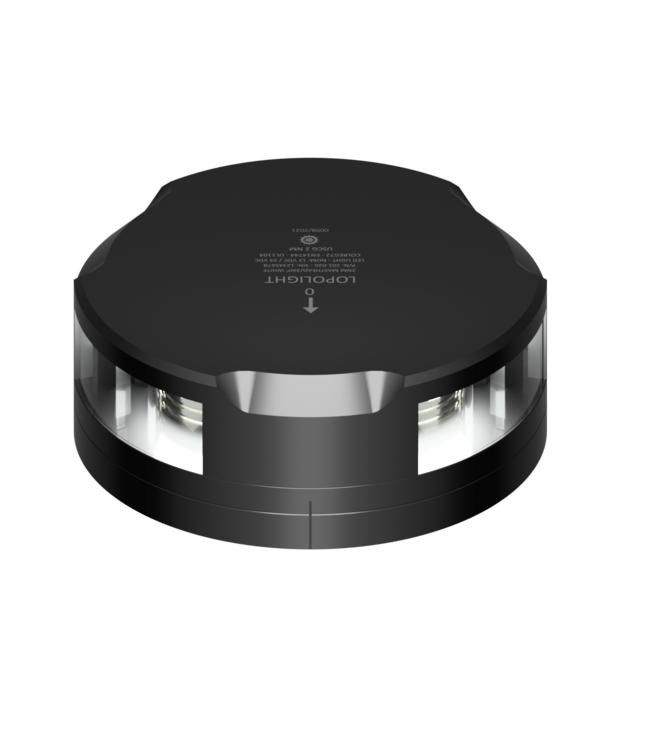

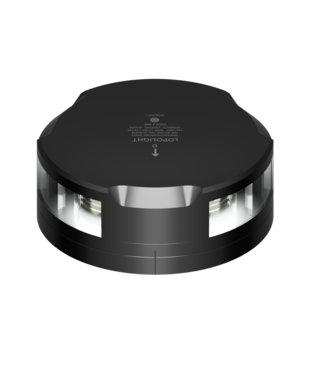

This compact navigation light from Lopolight is specifically designed for vessels under 12 metres, delivering reliable illumination in compliance with international maritime standards. The navigation light is DNV certified and meets COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS and M.E.D. standards, making it suitable for both recreational and professional applications.
Thanks to its robust black anodized aluminum housing (25µ) and PMMA lens, this navigation light withstands even the harshest marine conditions. With an IP68 rating and an operating temperature range of -25°C to 55°C, it performs reliably in all weather conditions.
The navigation light comes pre-cabled with a 0.75 metre shielded marine-grade cable, including an installation guide — ready for direct plug-and-play mounting.
Key Features:
| Specification | Value |
|---|---|
| Item Number | 201-020-FB-B |
| Light Color | White |
| Dimensions (metric) | Ø92.5mm x 36mm |
| Dimensions (imperial) | Ø3.6" x 1.4" |
| Certification | DNV — declaration and certificates available at lopolight.com/support |
| Approved To | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Visibility | 2 Nautical Miles (NM) |
| Included in Package | 1x Navigation light, pre-cabled with 0.75m shielded marine-grade cable, installation guide |
| Operating Temperature | -25°C to 55°C |

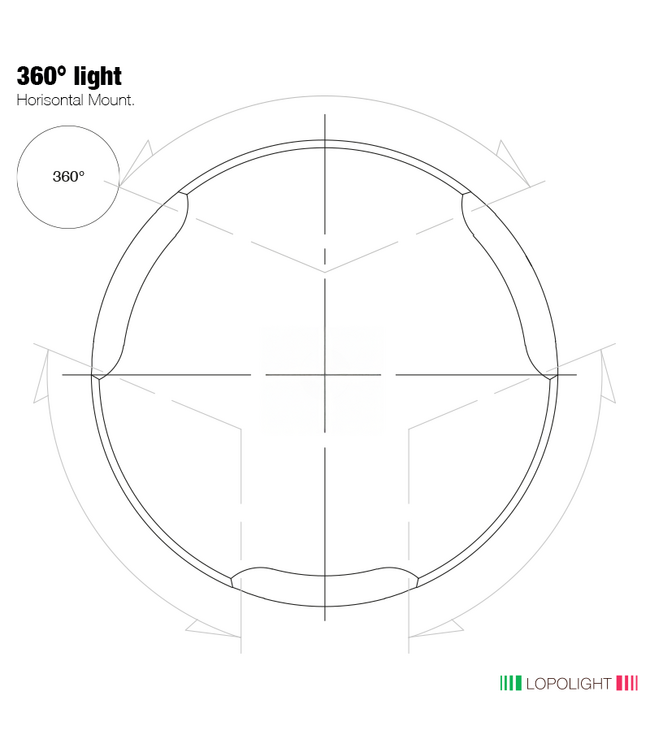

| Mounting | Horizontal |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane |
| Operating Voltage | 10-32VDC |
| EAN | 5704438043527 |
| IP Rating | IP68 |
| Power Draw | 3W |
| UPC Code | 879343043650 |
| Connection | 0.7m cable |
| Current Consumption @ 12VDC | 225 mA |
| Current Consumption @ 24VDC | 156 mA |
| Vessel Size | Under 12M |
| Min. Feed Wire Gauge | 0.5mm² / AWG22 |
| Weight | 0.46 kg / 16.09 oz |
